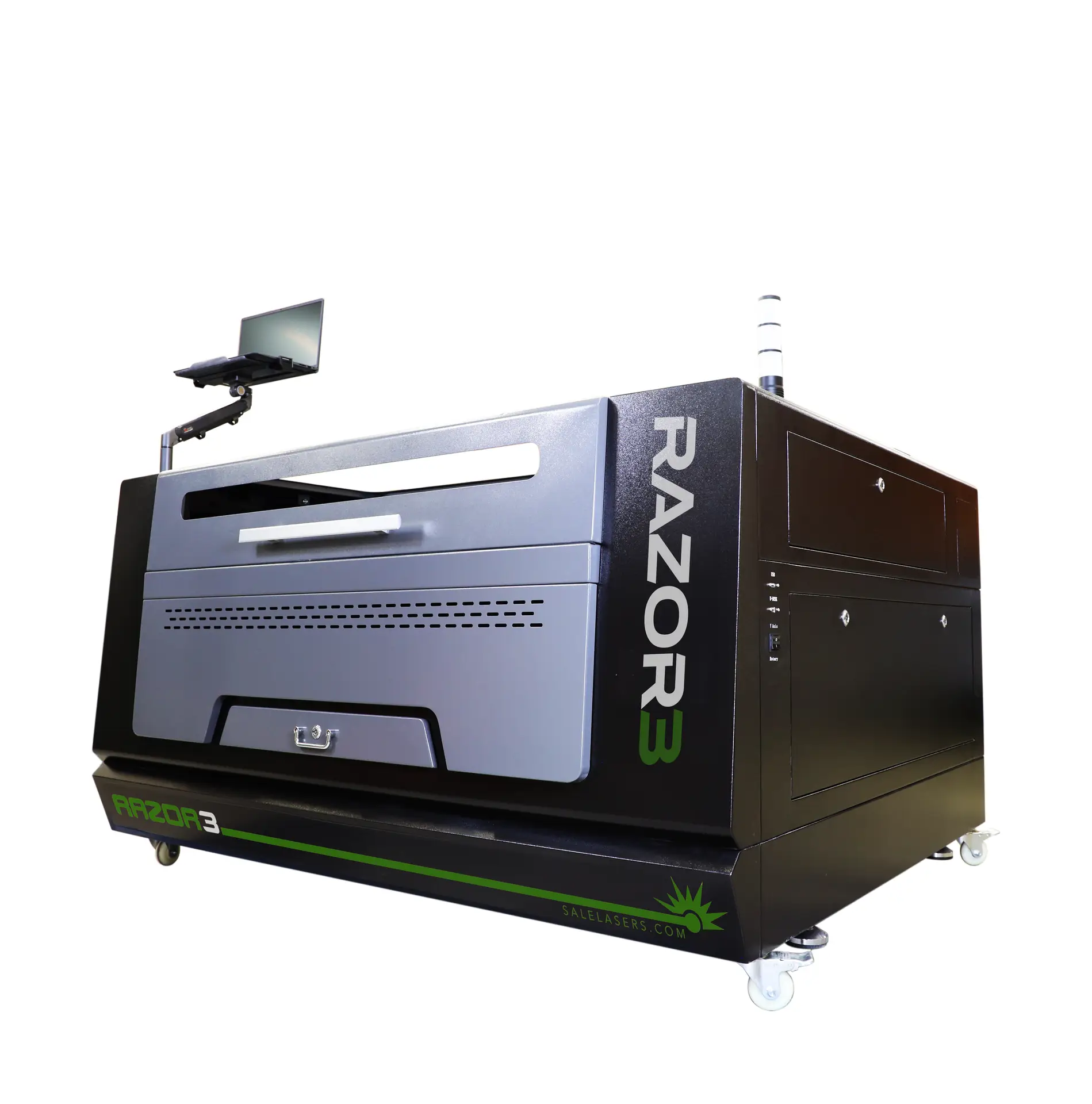

Razor 3 – Industrial CO2 Laser System

CO2 LasersRazor Series

The SA Laser’s Razor 3 is a top-tier industrial CO2 laser cutter and engraver ideal for both novices and professionals. It significantly outpaces traditional models with a 4X speed increase, enhanced by features like DC brush-less servo motors and HIWIN Synch-Motion Technology Rails. It’s versatile, with a 73cm 3-jaw rotary, air assist pump, CW5200 chiller, and 550W exhaust. User-friendly with a wireless controller and LED illuminated workbed, it’s backed by a robust 2-year US warranty, making it a smart choice for anyone serious about laser cutting and engraving. Each system comes equipped with Lightburn software, air assist, servo motors, a 5200 Series chiller, a pass thru door system, an integrated touchpad, an illuminated work bed, a stack light, and a full supply kit.

Description

Razor 3 is a high-performance industrial CO2 laser system built for speed, precision, and dependable day-to-day production. It’s ideal for cutting and engraving wood, acrylic, leather, rubber, MDF, paper, fabric, and more. A strong choice for businesses that need a larger work area, smoother workflow, and professional-grade results they can scale with.

Ready to start with Razor 3?
Get pricing, financing options, and expert guidance to see if Razor 3 is the right fit for your business.
Get a Quote

FEATURES

5-Day Comprehensive Hands-On Training
True DC Brush-Less Servo Motor
Open Pass-Through Design
Hiwin Rails And Bearings With SyncMotion Technology

If you're thinking to yourself, "I want to get a laser engraver, but i'm not quite sure what to get or where to start". In this video we go over the differences between the two technologies, and how they can meet your needs.


FEATURES

II-VI High Resolution Lenses And Mirrors
36" X 52" Work Bed With Motorized Z-Axis
Dual Honeycomb And Knife Work Beds
Front And Rear Pass-Through Doors
Integrated Workstation
LED Illuminated Work Area & Stack Light
3-Jaw Rotary, Chiller & Exhaust Pump INCLUDED
USA-Based Lightburn Software INCLUDED

SPECS

CUTTING AREA
36" x 52"
SOFTWARE INTERFACE
LIGHTBURN (INCLUDED)
Z-TABLE
AUTOMATIC LOWER OR RAISE 8"
PLATFORM CAPACITY
UP TO 30 LBS. LIFTING 35 LBS. STATIC
WARRANTY
2-YEARS
LASER POWER
CO2 GLASS 130W

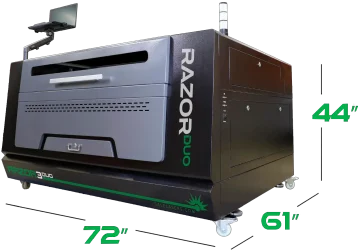

MACHINE DIMENSIONS
72" × 61" × 44"
WORKBED TYPE
INCLUDES BOTH HONEYCOMB & KNIFE BLADE PLATFORMS
POWER SUPPLY
STANDARD AC 110V
CRATE DIMENSIONS
75" × 65" × 49"
LASER / PC CONNECTIVITY
USB AND WIFI NETWORKING
MOTOR TYPE
DC BRUSH-LESS SERVO MOTORS
VENTING ATTACHMENTS
AIR EXHAUST FAN W/ EXTENDED VENTING PIPE
OS COMPATIBILITY
WINDOWS, MAC OS, OR LINUX (32 OR 64-BIT)
Net Weight
1103lbs

WHY CHOOSE A RAZOR CO2 LASER FROM SA LASER

SA Laser offers powerful CO2 laser engraving machines that are redefining the standards for laser cutting and engraving. The Razor 3 offers exceptional speed and precision, can work with a versatile range of organic materials, and includes accessories like a CO2 laser chiller and exhaust pump. We also offer CO2 Spark Laser Training to help engravers build the skills they need to effectively utilize their equipment and elevate their productivity. By choosing the Razor CO2 laser from SA Laser, you’re investing in cutting-edge technology that combines speed, reliability, and ease of use for your cutting and engraving needs.

MATERIALS

Engraving
Cutting
Acrylic
Wood
Leather
Rubber
Paper
Plastics
Fabric
Mdf
Cardboard
Corian
Foam
Fiber Glass
Gold
Aluminum
Silver
Steel
Brass
