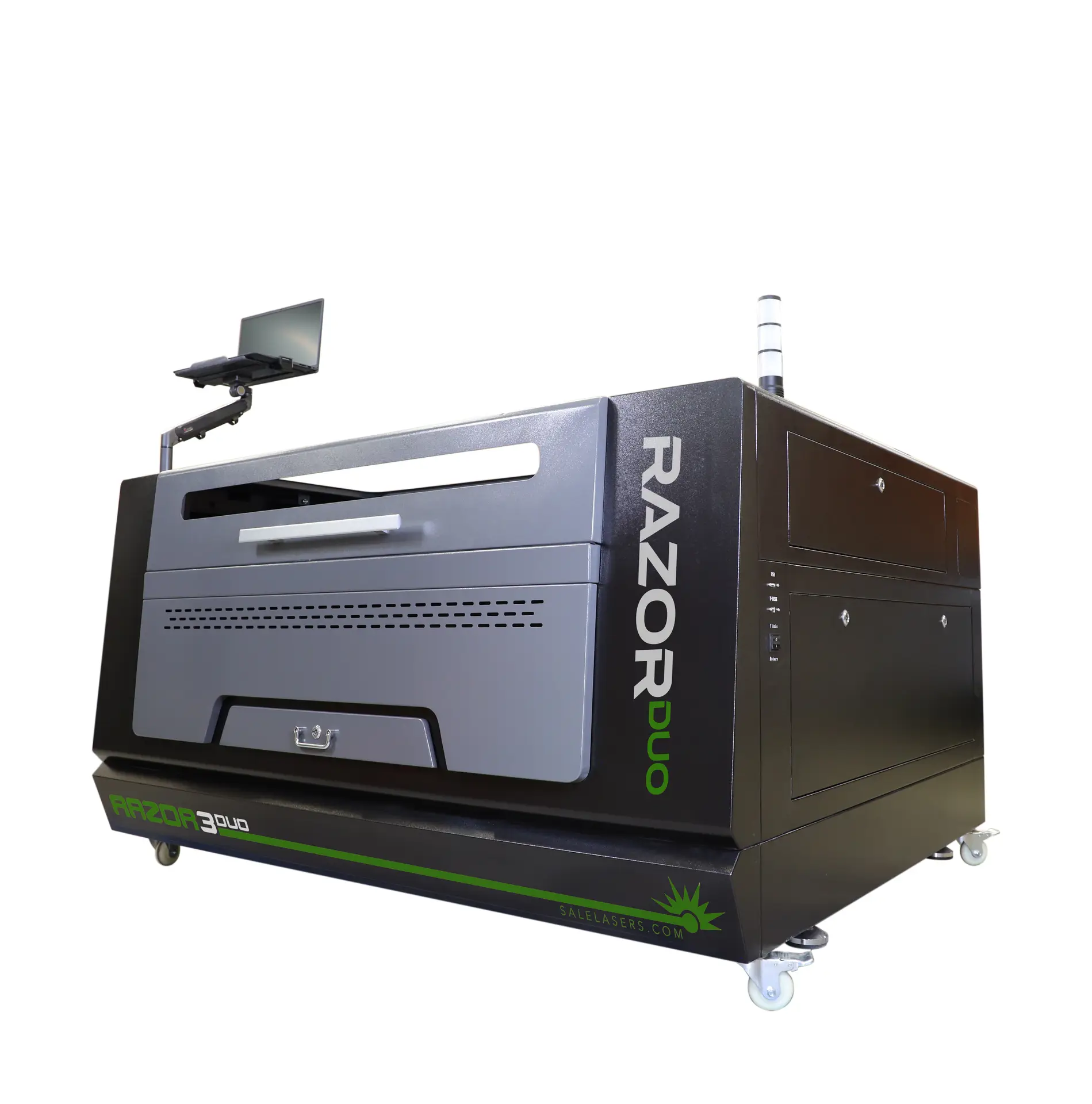

Razor 3 Duo – Industrial CO2 Laser System

CO2 LasersRazor Series

The Razor Duo stands as a groundbreaking advancement in laser technology, uniquely equipped with a dual-source laser system that combines a powerful 130W CO2 glass tube and a precise 50W RF laser source. This innovative combination allows for an unparalleled range of applications, from deep, robust cuts to delicate, high-resolution engravings. Its dual-source capability not only expands the materials it can work with but also enhances the quality and speed of each job. Tailored for those who demand versatility and precision, the Razor Duo is an excellent choice for businesses looking to expand their capabilities or for professionals seeking the ultimate tool in industrial laser cutting and engraving. Each system comes equipped with Lightburn software, air assist, servo motors, a 5200 Series chiller, a pass thru door system, an integrated touchpad, an illuminated work bed, a stack light, and a full supply kit.

Description

Razor 1 is a compact industrial CO2 laser system built for speed, precision, and reliable day-to-day production. It’s ideal for cutting and engraving acrylic, wood, leather, rubber, MDF, paper, fabric, and more. A strong choice for businesses that want professional results, smooth workflow, and a system that’s easy to operate and scale with.

Ready to start with Razor 1?
Get pricing, financing options, and expert guidance to see if Razor 1 is the right fit for your business.
Get a Quote

FEATURES

5-Day Comprehensive Hands-On Training
True DC Brush-Less Servo Motor
Open Pass-Through Design
Hiwin Rails And Bearings With SyncMotion Technology

If you're thinking to yourself, "I want to get a laser engraver, but i'm not quite sure what to get or where to start". In this video we go over the differences between the two technologies, and how they can meet your needs.

II-VI High Resolution Lenses And Mirrors
24" X 40" Work Bed With Motorized Z-Axis
Dual Honeycomb And Knife Work Beds
Integrated Workstation
LED Illuminated Work Area & Stack Light
3-Jaw Rotary, Chiller & Exhaust Pump INCLUDED
USA Based LightBurn Software INCLUDED

SPECS

CUTTING AREA
36" x 52"
SOFTWARE INTERFACE
LIGHTBURN (INCLUDED)
Z-TABLE
AUTOMATIC LOWER OR RAISE 8"
PLATFORM CAPACITY
UP TO 30 LBS. LIFTING 35 LBS. STATIC
WARRANTY
2-YEARS
LASER POWER
CO2 GLASS 130W

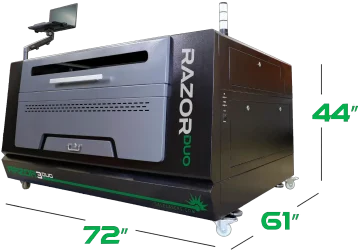

MACHINE DIMENSIONS
72" × 61" × 44"
WORKBED TYPE
INCLUDES BOTH HONEYCOMB & KNIFE BLADE PLATFORMS
POWER SUPPLY
STANDARD AC 110V
CRATE DIMENSIONS
75" × 65" × 49"
LASER / PC CONNECTIVITY
USB AND WIFI NETWORKING
MOTOR TYPE
DC BRUSH-LESS SERVO MOTORS
VENTING ATTACHMENTS
AIR EXHAUST FAN W/ EXTENDED VENTING PIPE
OS COMPATIBILITY
WINDOWS, MAC OS, OR LINUX (32 OR 64-BIT)
Net Weight
1103lbs

DIMENSIONS

MATERIALS

Engraving
Cutting
Acrylic
Wood
Leather
Rubber
Paper
Plastics
Fabric
Mdf
Cardboard
Corian
Foam
Fiber Glass
Gold
Aluminum
Silver
Steel
Brass
